Automatic Domain Resolution and Certificate Management for Kubernetes Ingress

Deployment

Please ensure that the following components are deployed:

cert-manager: Installation - cert-manager Documentation

1

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.15.3/cert-manager.yaml

cert-manager-webhook-dnspod: imroc/cert-manager-webhook-dnspod: cert-manager webhook resolver for DNSPod (github.com)

1

kubectl apply -f https://raw.githubusercontent.com/imroc/cert-manager-webhook-dnspod/master/bundle.yaml

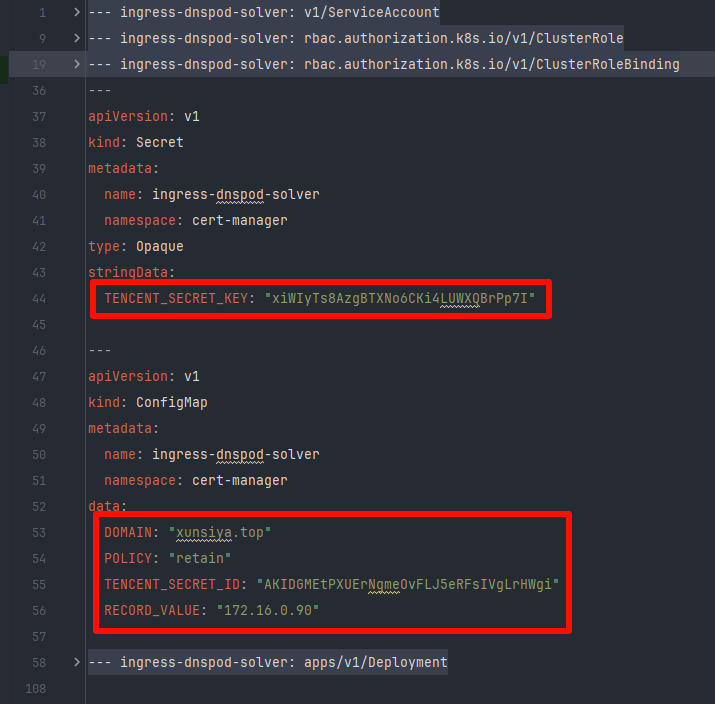

Modify the deployment file ingress-dnspod-solver.yaml as follows:

ingress-dnspod-solver.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106


apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-dnspod-solver
  namespace: cert-manager
  labels:
    app: ingress-dnspod-solver

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-dnspod-solver
rules:
  - apiGroups: [ "networking.k8s.io" ]
    resources: [ "ingresses" ]
    verbs: [ "get", "list", "watch" ]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-dnspod-solver
  labels:
    app: ingress-dnspod-solver
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-dnspod-solver
subjects:
  - apiGroup: ""
    kind: ServiceAccount
    name: ingress-dnspod-solver
    namespace: cert-manager

---
apiVersion: v1
kind: Secret
metadata:
  name: ingress-dnspod-solver
  namespace: cert-manager
type: Opaque
stringData:
  TENCENT_SECRET_KEY: "<secret_key>"  # Tencent Cloud API Secret Key

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: ingress-dnspod-solver
  namespace: cert-manager
data:
  DOMAIN: "example.com"                # Domain name
  POLICY: "retain"                     # Monitoring handling policy: retain (keep records on resource update), update (update records on resource update)
  TENCENT_SECRET_ID: "<secret_id>"  # Tencent Cloud API Secret ID
  RECORD_VALUE: "<record_value>"          # DNS record value

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ingress-dnspod-solver
  namespace: cert-manager
  labels:
    app: ingress-dnspod-solver
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ingress-dnspod-solver
  template:
    metadata:
      labels:
        app: ingress-dnspod-solver
    spec:
      serviceAccountName: ingress-dnspod-solver
      containers:
        - name: ingress-dnspod-solver
          image: harbor.example.com/devops/ingress-dnspod-solver:latest
          imagePullPolicy: IfNotPresent
          env:
            - name: DOMAIN
              valueFrom:
                configMapKeyRef:
                  name: ingress-dnspod-solver
                  key: DOMAIN
            - name: POLICY
              valueFrom:
                configMapKeyRef:
                  name: ingress-dnspod-solver
                  key: POLICY
            - name: TENCENT_SECRET_ID
              valueFrom:
                configMapKeyRef:
                  name: ingress-dnspod-solver
                  key: TENCENT_SECRET_ID
            - name: TENCENT_SECRET_KEY
              valueFrom:
                secretKeyRef:
                  name: ingress-dnspod-solver
                  key: TENCENT_SECRET_KEY
            - name: RECORD_VALUE
              valueFrom:
                configMapKeyRef:
                  name: ingress-dnspod-solver
                  key: RECORD_VALUE

1

kubectl apply -f ingress-dnspod-solver.yaml

Source Code Analysis and Build

The source code is written in go and uses go mod to manage dependencies.

main.go

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265


package main

import (
	"fmt"
	"github.com/tencentcloud/tencentcloud-sdk-go/tencentcloud/common"
	"github.com/tencentcloud/tencentcloud-sdk-go/tencentcloud/common/profile"
	dnspod "github.com/tencentcloud/tencentcloud-sdk-go/tencentcloud/dnspod/v20210323"
	"go.uber.org/zap"
	networkingv1 "k8s.io/api/networking/v1"
	"k8s.io/client-go/informers"
	"k8s.io/client-go/kubernetes"
	"k8s.io/client-go/rest"
	"k8s.io/client-go/tools/cache"
	"k8s.io/client-go/tools/clientcmd"
	"os"
)

var (
	logger       *zap.Logger
	version      string
	policy       string
	domain       string
	secretId     string
	secretKey    string
	recordValue  string
	dnsPodClient *dnspod.Client
	clientSet    *kubernetes.Clientset
)

func initLogger() {
	logger, _ = zap.NewDevelopment()
	defer func(logger *zap.Logger) {
		err := logger.Sync()
		if err != nil {
			fmt.Println("Logger sync error: ", err)
		}
	}(logger)
}

func initCheck() {
	version = os.Getenv("VERSION")
	if version == "" {
		version = "2021-03-23"
	}
	policy = os.Getenv("POLICY")
	if policy == "" {
		policy = "retain"
	}
	domain = os.Getenv("DOMAIN")
	if domain == "" {
		logger.Error("Please set the environment variable `DOMAIN`")
		os.Exit(1)
	}
	secretId = os.Getenv("TENCENT_SECRET_ID")
	secretKey = os.Getenv("TENCENT_SECRET_KEY")
	if secretId == "" || secretKey == "" {
		logger.Error("Please set the environment variables `TENCENT_SECRET_ID` and `TENCENT_SECRET_KEY`")
		os.Exit(1)
	}
	recordValue = os.Getenv("RECORD_VALUE")
	if recordValue == "" {
		logger.Error("Please set the environment variable `RECORD_VALUE`")
		os.Exit(1)
	}

	logger.Info("---------------------------------")
	logger.Info("Version" + ": " + version)
	logger.Info("Policy" + ": " + policy)
	logger.Info("Domain" + ": " + domain)
	logger.Info("SecretId" + ": " + secretId)
	logger.Info("SecretKey: *****")
	logger.Info("RecordValue" + ": " + recordValue)
	logger.Info("---------------------------------")
}

func getRecordDict() map[string]uint64 {
	recordDict := make(map[string]uint64)
	request := dnspod.NewDescribeRecordListRequest()
	request.Domain = common.StringPtr(domain)
	request.RecordType = common.StringPtr("A")
	request.Offset = common.Uint64Ptr(0)
	request.Limit = common.Uint64Ptr(10)

	// Response corresponds to the DescribeRecordListResponse instance
	response, err := dnsPodClient.DescribeRecordList(request)
	if err != nil {
		logger.Panic(err.Error())
	}
	for i := 0; i < len(response.Response.RecordList); i++ {
		recordDict[*response.Response.RecordList[i].Name] = *response.Response.RecordList[i].RecordId
	}
	domainCount := *response.Response.RecordCountInfo.ListCount
	domainTotal := *response.Response.RecordCountInfo.TotalCount
	for domainCount < domainTotal {
		request.Offset = common.Uint64Ptr(domainCount)
		response, err = dnsPodClient.DescribeRecordList(request)
		if err != nil {
			logger.Panic(err.Error())
		}
		for i := 0; i < len(response.Response.RecordList); i++ {
			recordDict[*response.Response.RecordList[i].Name] = *response.Response.RecordList[i].RecordId
		}
		domainCount += *response.Response.RecordCountInfo.ListCount
	}

	logger.Info("RecordDict: ", zap.Any("RecordDict", recordDict))
	return recordDict
}

func createRecord(subDomain string) {
	request := dnspod.NewCreateRecordRequest()
	request.Domain = common.StringPtr(domain)
	request.SubDomain = common.StringPtr(subDomain)
	request.RecordType = common.StringPtr("A")
	request.RecordLine = common.StringPtr("默认")
	request.Value = common.StringPtr(recordValue)

	_, err := dnsPodClient.CreateRecord(request)
	if err != nil {
		logger.Panic(err.Error())
	}
}

func updateRecord(recordId uint64, subDomain string) {
	request := dnspod.NewModifyRecordRequest()
	request.Domain = common.StringPtr(domain)
	request.RecordId = common.Uint64Ptr(recordId)
	request.SubDomain = common.StringPtr(subDomain)
	request.RecordType = common.StringPtr("A")
	request.RecordLine = common.StringPtr("默认")
	request.Value = common.StringPtr(recordValue)

	_, err := dnsPodClient.ModifyRecord(request)
	if err != nil {
		logger.Panic(err.Error())
	}
}

func deleteRecord(recordId uint64) {
	request := dnspod.NewDeleteRecordRequest()
	request.Domain = common.StringPtr(domain)
	request.RecordId = common.Uint64Ptr(recordId)

	_, err := dnsPodClient.DeleteRecord(request)
	if err != nil {
		logger.Panic(err.Error())
	}
}

func addHandler(obj interface{}) {
	logger.Info("Detected Ingress Add event")
	recordDict := getRecordDict()
	addIngress := obj.(*networkingv1.Ingress)
	for i := 0; i < len(addIngress.Spec.Rules); i++ {
		customDomain := addIngress.Spec.Rules[i].Host
		// Check if customDomain ends with domain
		if customDomain[len(customDomain)-len(domain):] != domain {
			continue
		}
		subDomain := customDomain[:len(customDomain)-len(domain)-1]
		if _, ok := recordDict[subDomain]; !ok {
			createRecord(subDomain)
		} else {
			if policy == "update" {
				updateRecord(recordDict[subDomain], subDomain)
			}
		}
	}
}

func updateHandler(oldObj, newObj interface{}) {
	logger.Info("Detected Ingress Update event")
	recordDict := getRecordDict()
	newIngress := newObj.(*networkingv1.Ingress)
	for i := 0; i < len(newIngress.Spec.Rules); i++ {
		customDomain := newIngress.Spec.Rules[i].Host
		// Check if customDomain ends with domain
		if customDomain[len(customDomain)-len(domain):] != domain {
			continue
		}
		subDomain := customDomain[:len(customDomain)-len(domain)-1]
		if _, ok := recordDict[subDomain]; !ok {
			createRecord(subDomain)
		} else {
			updateRecord(recordDict[subDomain], subDomain)
		}
	}
}

func deleteHandler(obj interface{}) {
	logger.Info("Detected Ingress Delete event")
	recordDict := getRecordDict()
	deleteIngress := obj.(*networkingv1.Ingress)
	for i := 0; i < len(deleteIngress.Spec.Rules); i++ {
		customDomain := deleteIngress.Spec.Rules[i].Host
		// Check if customDomain ends with domain
		if customDomain[len(customDomain)-len(domain):] != domain {
			continue
		}
		subDomain := customDomain[:len(customDomain)-len(domain)-1]
		if _, ok := recordDict[subDomain]; ok {
			deleteRecord(recordDict[subDomain])
		}
	}
}

func k8sInformer() {
	// Create shared Informer factory
	factory := informers.NewSharedInformerFactory(clientSet, 0)

	// Get Ingress watcher Informer
	ingressInformer := factory.Networking().V1().Ingresses().Informer()

	// Add event handlers for Ingress resource changes
	_, err := ingressInformer.AddEventHandler(cache.ResourceEventHandlerFuncs{
		AddFunc:    addHandler,
		UpdateFunc: updateHandler,
		DeleteFunc: deleteHandler,
	})
	if err != nil {
		return
	}

	// Start informer and wait for cache sync
	stopCh := make(chan struct{})
	defer close(stopCh)
	factory.Start(stopCh)
	factory.WaitForCacheSync(stopCh)

	// Block to keep listening for events
	<-stopCh
}

func main() {
	// Initialization
	initLogger()
	initCheck()

	// Create DNSPod client
	credential := common.NewCredential(secretId, secretKey)
	cpf := profile.NewClientProfile()
	cpf.HttpProfile.Endpoint = "dnspod.tencentcloudapi.com"
	dnsPodClient, _ = dnspod.NewClient(credential, "", cpf)

	// Create Kubernetes client
	var config *rest.Config
	var err error
	// Check if running inside cluster
	if os.Getenv("KUBERNETES_SERVICE_HOST") != "" {
		config, err = rest.InClusterConfig()
		if err != nil {
			logger.Panic(err.Error())
		}
	} else {
		if _, err = os.Stat("./.kube/config"); os.IsNotExist(err) {
			logger.Panic("Please set the kubeconfig file")
		}
		config, err = clientcmd.BuildConfigFromFlags("", "./.kube/config")
	}
	clientSet, err = kubernetes.NewForConfig(config)
	if err != nil {
		logger.Panic(err.Error())
	}
	k8sInformer()
}

Dockerfile

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


FROM golang:alpine AS builder
WORKDIR /app
COPY . .
RUN go mod download
RUN go build -o main .

FROM alpine:latest
WORKDIR /app
COPY --from=builder /app/main .
CMD ["./main"]

Build image

1

docker build -t harbor.example.com/devops/ingress-dnspod-solver:latest .

Push image

1

docker push harbor.example.com/devops/ingress-dnspod-solver:latest
